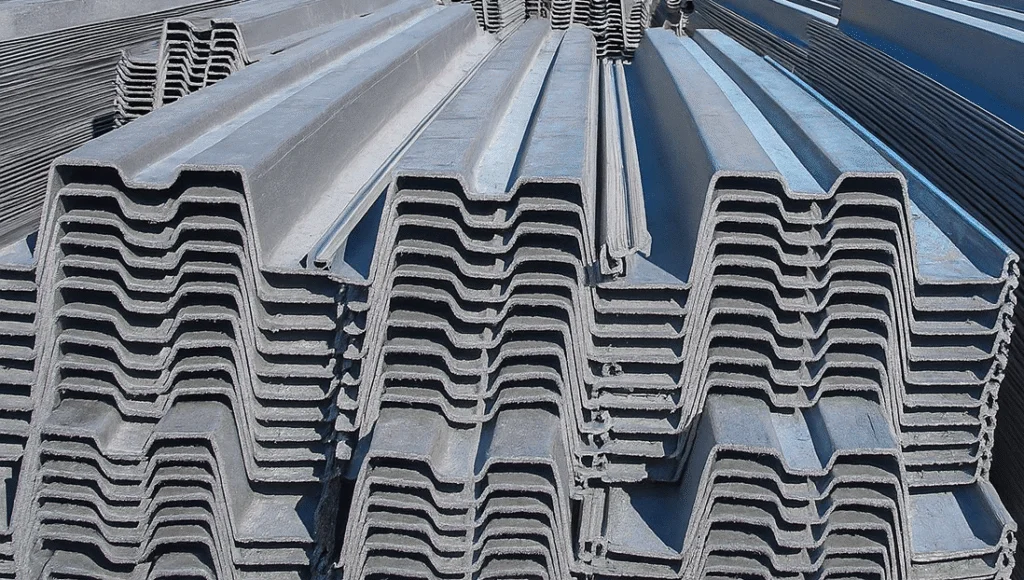

FRP Piling Sheets The Future Of Infrastructure
Revolutionizing infrastructure with next-gen FRP Piling Sheets for marine, construction and industrial use.
Applications of FRP Piling Sheets

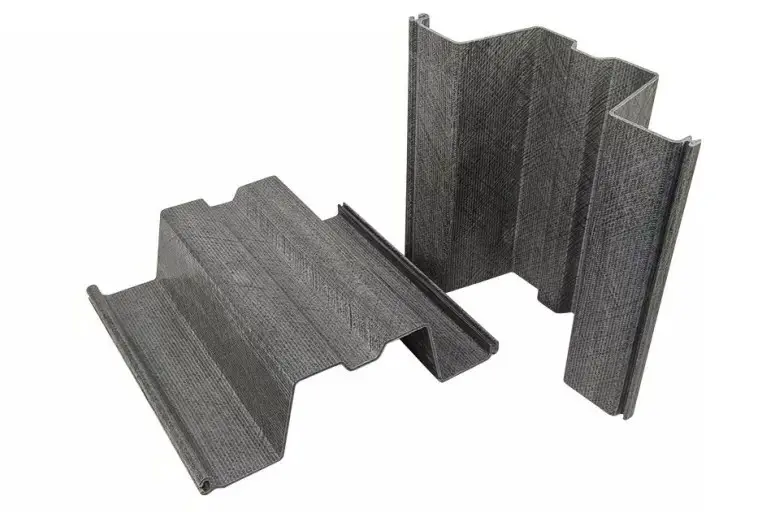

At Novel Composites, our Fiberglass Reinforced Polymer (FRP) piling sheets are engineered for strength, durability, and superior performance in demanding environments. Whether for marine protection, infrastructure development, or industrial reinforcements, FRP piling sheets offer a lightweight, corrosion-resistant, and long-lasting alternative to traditional materials like steel and wood.

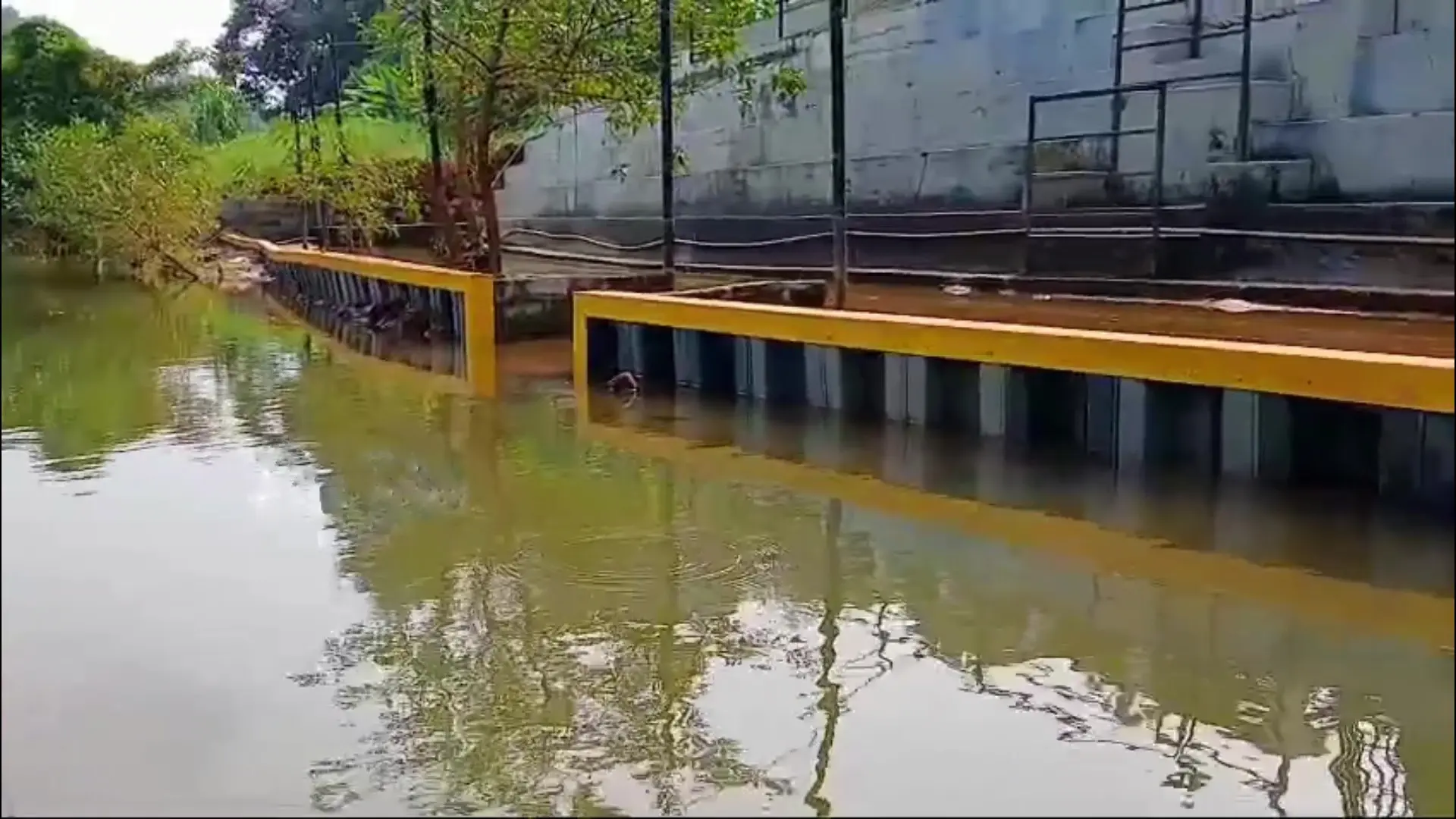

Project Showcase
Where FRP Piling Sheets Excel

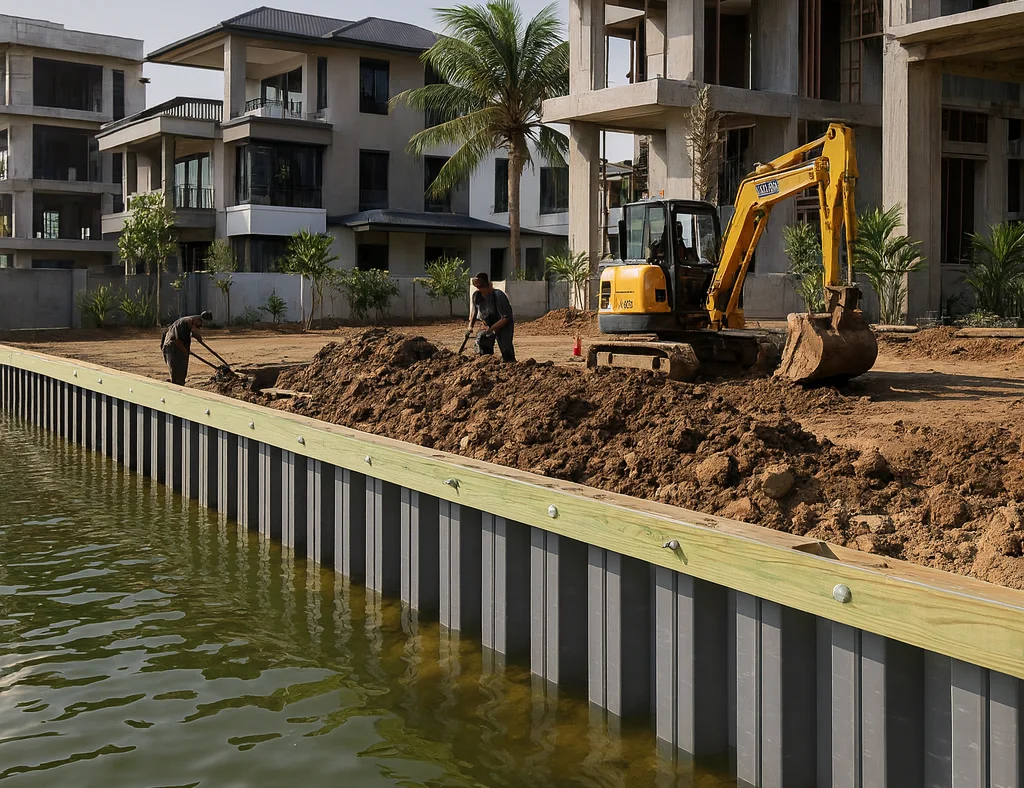

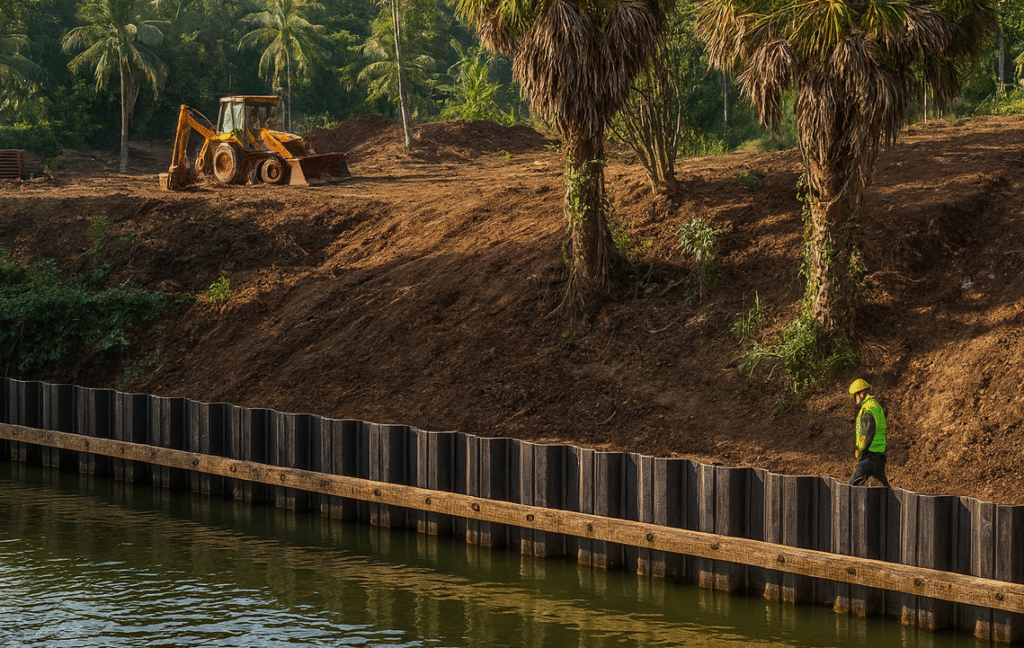

1. Marine & Coastal Protection
FRP piling sheets are ideal for waterfront and marine applications, offering unmatched corrosion resistance in seawater and harsh coastal environments.

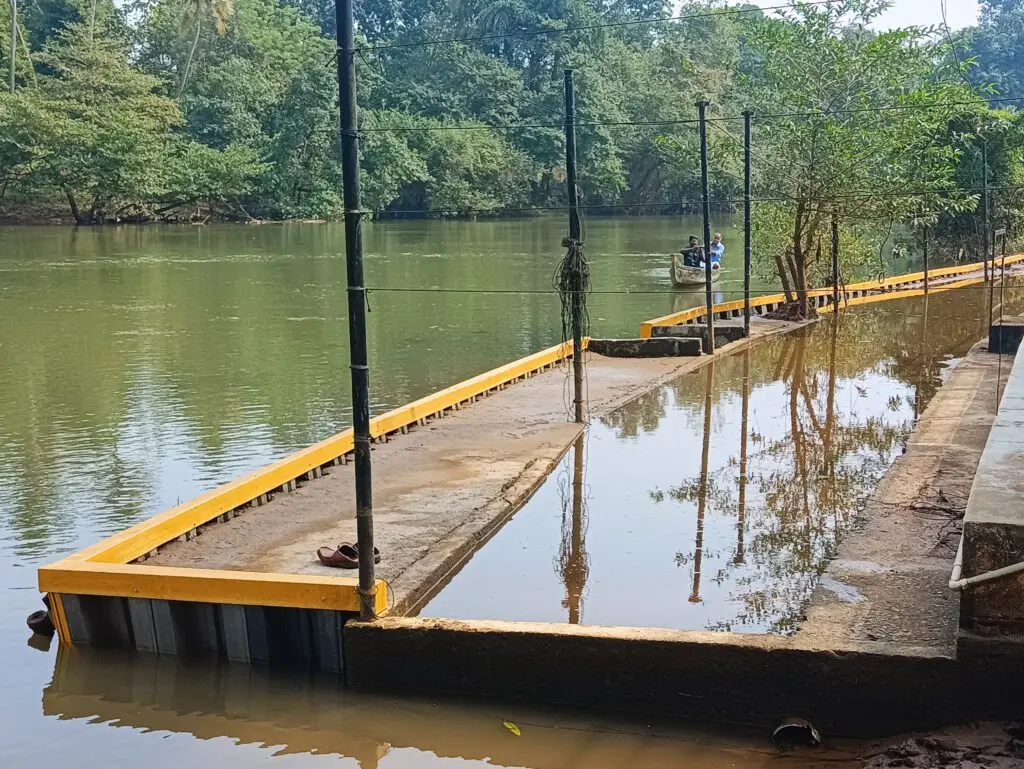

- Docks & Piers – Withstand continuous water exposure without rusting or weakening.

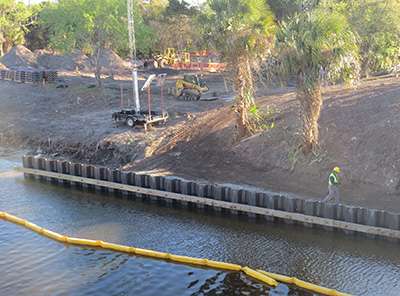

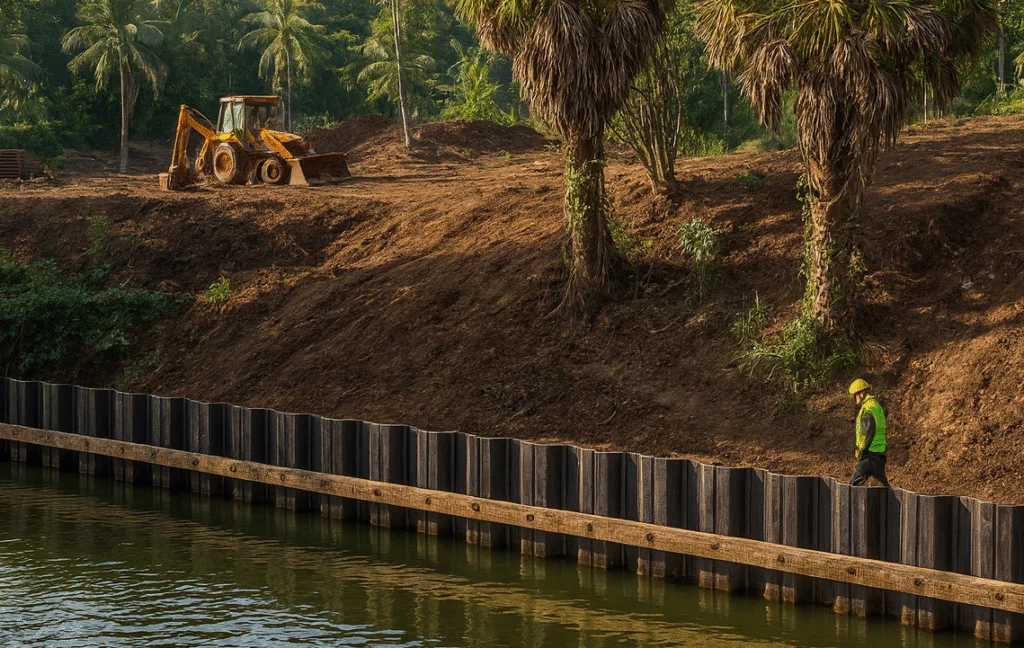

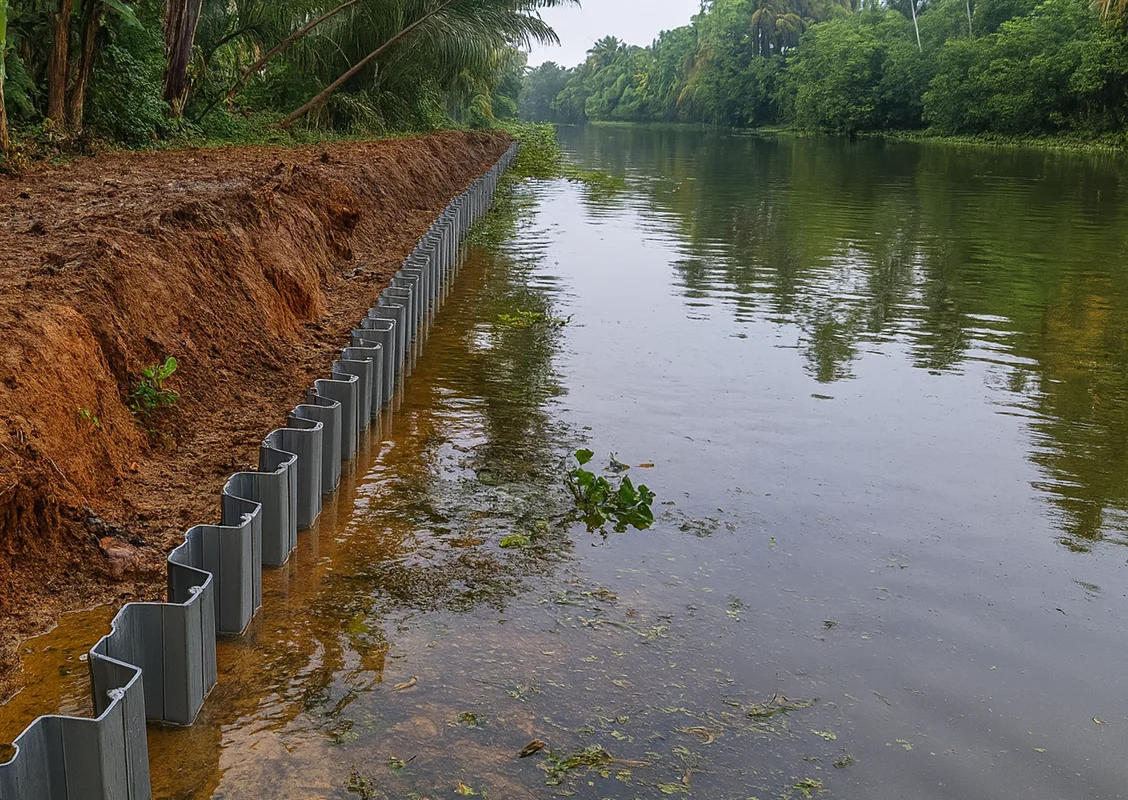

- Seawalls & Bulkheads – Prevent shoreline erosion and protect coastal infrastructure.

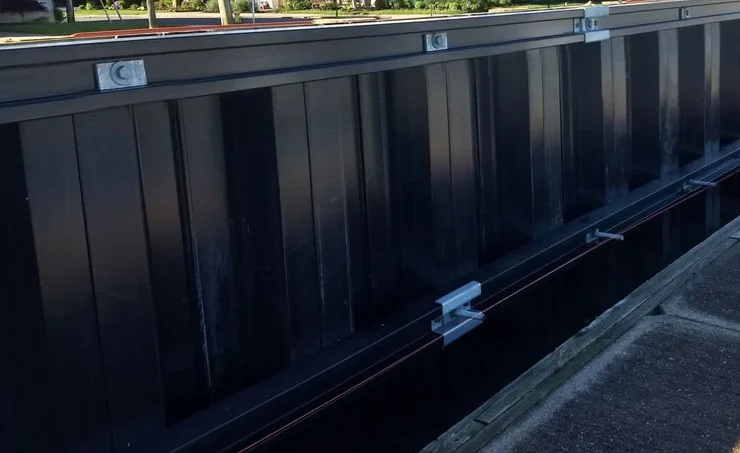

- Flood Barriers – Act as a durable and maintenance-free solution for flood-prone areas.
3. Industrial & Environmental Protection
FRP’s resistance to chemicals, moisture, and temperature fluctuations makes it an excellent choice for industrial and environmental projects.
- Landfills & Environmental Barriers – Acts as a non-toxic, eco-friendly containment solution.
- Chemical Containment Areas – Protects against spills and leaks in chemical plants.
- Wastewater Treatment Facilities – Maintains structural integrity in corrosive environments.
2. Infrastructure & Construction

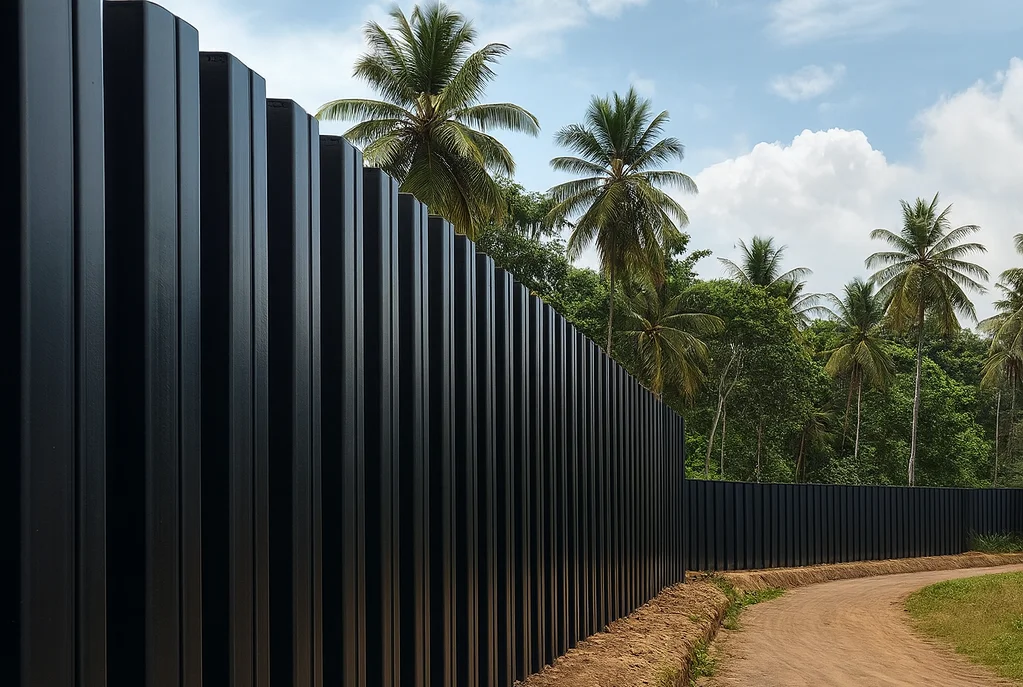

Engineered for foundation and structural applications, FRP piling sheets provide strength and longevity, reducing the need for frequent repairs.Retaining Walls – Offer a lightweight yet strong alternative to traditional materials.

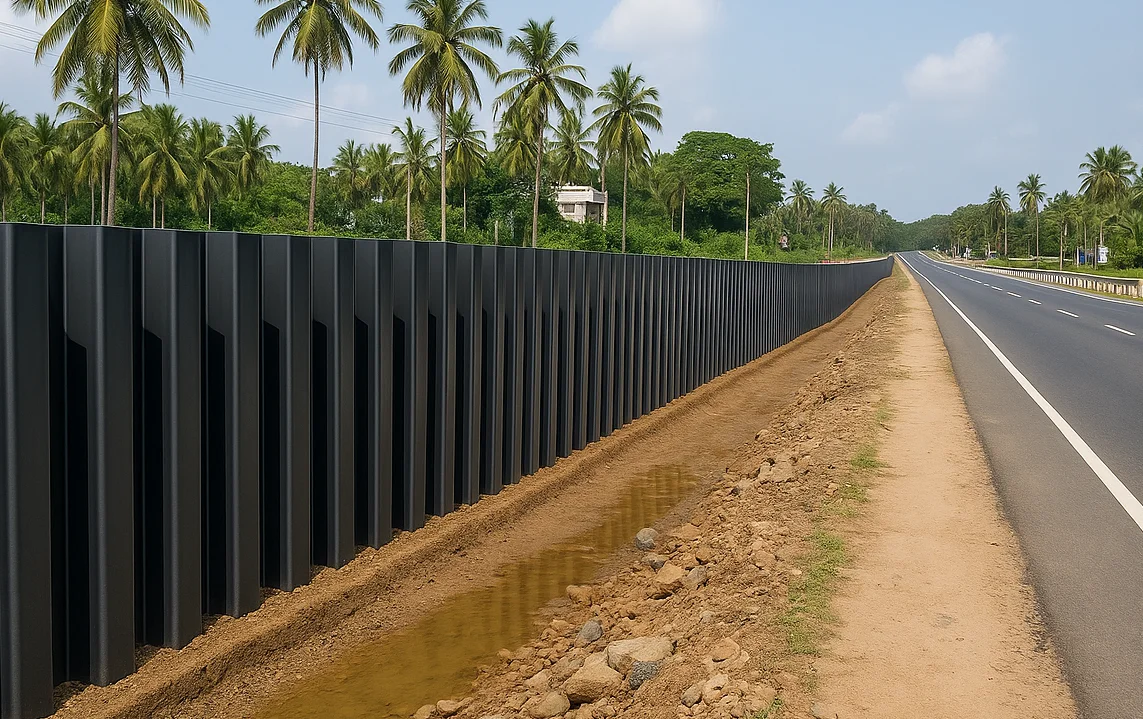

- Roadway & Rail Embankments – Prevent soil erosion and ground shifting.
- Bridges & Tunnels – Used for reinforcement in high-moisture environments.
4. Urban & Commercial Development
FRP piling sheets enhance modern construction with aesthetic appeal and long-term cost savings.

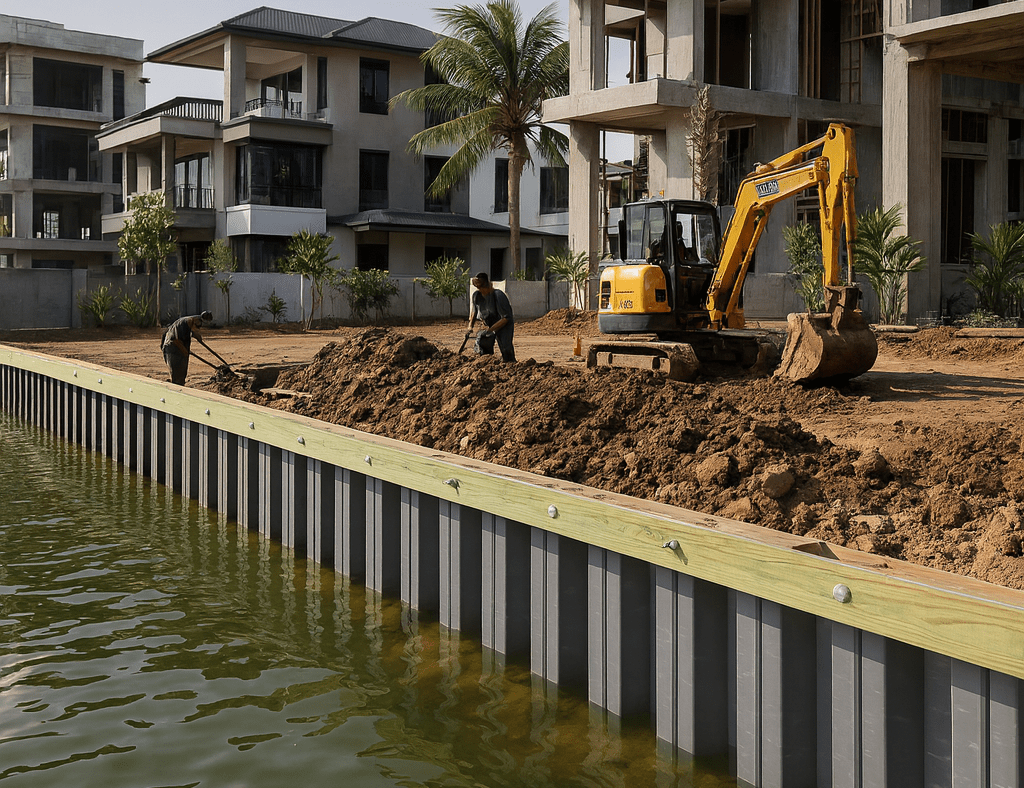

- Waterfront Promenades & Landscaping – Customizable finishes make FRP an attractive choice for public spaces.
- Building Foundations – Reinforce structures while reducing maintenance costs.
- Underground Parking & Basements – Prevents water seepage and structural damage.
Why Choose FRP for Your Next Project?
- Corrosion-Resistant & Long-Lasting – Outperforms steel and wood in harsh conditions.
- Lightweight & Easy to Install – Reduces labor costs and speeds up construction.
- Low Maintenance & Cost-Effective – No rusting, no painting, no frequent replacements.
- Eco-Friendly & Non-Toxic – Sustainable alternative for modern infrastructure.

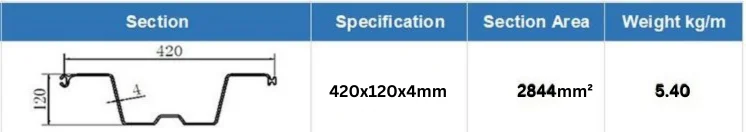

| Property | Specification |
|---|---|
| Base Material | Fiberglass Reinforced Polymer (FRP) |
| Resin Types | Polyester, Vinyl Ester, Epoxy |
| Fiberglass Content | 70% to 75% |
| Length | 4 meters to 6 meters (custom lengths available) |
| Width | 420 mm |
| Thickness | 4 mm |
| Tensile Strength | More than 400 MPa |
| Compressive Strength | 150 MPa to 300 MPa |
| Flexural Strength | 400 MPa to 800 MPa |
| Modulus of Elasticity | 20,000 MPa to 50,000 MPa |
| Density | 1.6 g/cm³ to 1.8 g/cm³ |
| Weight per Meter | 5.4 kg |
| Corrosion Resistance | Excellent |
| UV Resistance | UV-resistant coatings available |
| Temperature Resistance | -40°C to 70°C |
| Chemical Resistance | Chemical Resistance Resistant to acids, alkalis, and salts |
| Bearing Capacity | Engineered for substantial loads |
| Impact Resistance | Designed to absorb impacts efficiently |
| Fire Resistance | Limited (flame-retardant options available) |
| Surface Finish | Smooth or Textured |
| Colour | Various colours, UV-protective paints available |
| Interlocking Design | Available |
| Ease of Handling | Lightweight for easy handling and installation |
| Lifespan | Exceeding 50 years |
| Resistance to Biological Damage | Resistant to rot, mold, and termites |
| Compliance & Standards | Designed and manufactured according to ASTM/ISO standards |
| Cost | Higher initial cost, significant long-term savings |

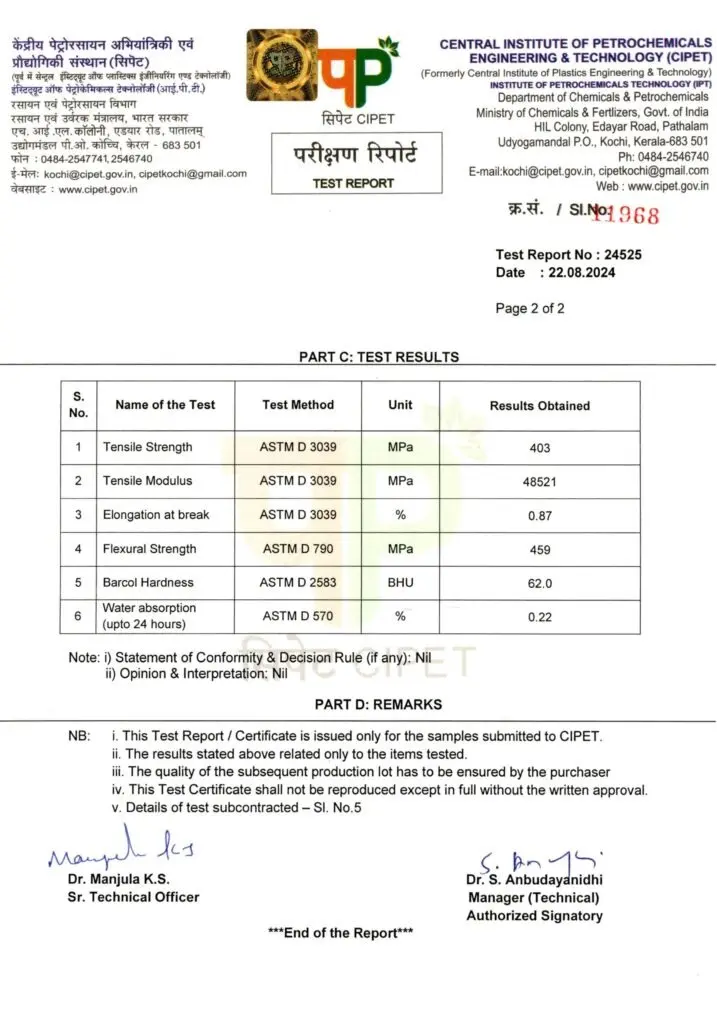

Certified By Central Institute Of Petrochemicals
Engineering & Technology (CIPET)
For More Information on Piling Sheets
Contact: 9349501442
